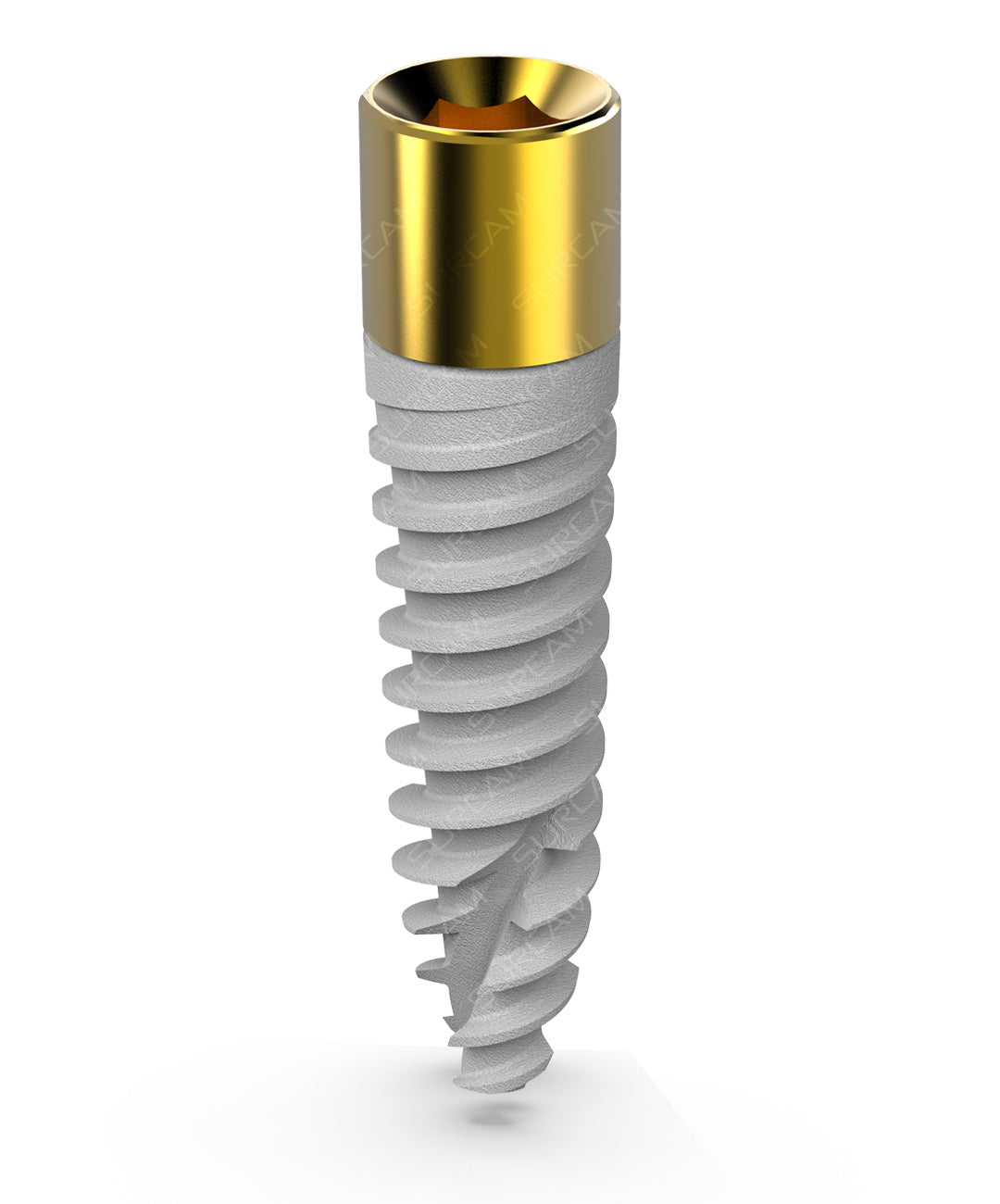

Pterygoid Implant - 4.0mm Neck

Pterygoid implants are a specialized type of dental implant anchored into the pterygoid process, a bone structure located in the posterior region of the upper jaw. These implants are specifically designed for cases where traditional implants cannot be used due to insufficient bone volume in the posterior maxilla.

Pterygoid implants offer a stable and reliable foundation for dental prostheses, such as bridges or dentures, in the upper jaw’s posterior region. This enhanced stability significantly improves chewing ability and resolves issues associated with loose or ill-fitting dentures, offering patients a more comfortable and effective solution.

Uniquely designed to match the intricate anatomy of the pterygoid bone structure, these implants ensure precise and secure placement. The smooth “neck” of the implant, featuring a Tin coating surface, is specifically engineered to prevent the adherence of periodontal pathogens, thereby reducing the risk of inflammation around the neck area.

Furthermore, the SLA-treated surface with its nano-structured design enhances osseointegration, promoting faster and more robust integration of the implant with the surrounding bone, ensuring long-term success and stability.

Product Details :

Pterygoid Implant

• Material: Titanium Alloy Ti 6Al 4V ELI

• Tin Coating: Titanium nitride Neck 4.0mm

• Internal Hexagon Connection

• 2.43mm: Connection dimension

• Tin Coating for Soft Tissue Level 4 mm Neck

• Surface: SLA Sand Blast and Acid Etching

• Conical Threads and Core

• Coarse Thread

• Anchoring Apex 2.0mm

Product includes :

The Advantages of Pterygoid Implant :

SURCAM’s surface treatment of Dental Implants is at a very high level, and

includes processes such as dry alumina blasting and double acid etching
(SLA type of dental implants surface treatment) :
